Product Details:
|
| Frame Material: | Casting Steel | Frame Size: | From 80mm To 355mm |
|---|---|---|---|
| Rated Power: | From 0.75KW To 355KW | Rated Voltage: | 380v,400v,690v.etc. |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP55 | Ambient Temperature: | -40℃~+50℃ |
| Cooling Method: | IC411 | Mounting Type: | B3/B5/V1/B35 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Highlight: | IP55 High Efficient Electric Motor,High Efficient Electric Motor IE3,IE3 Induction Motor |
||

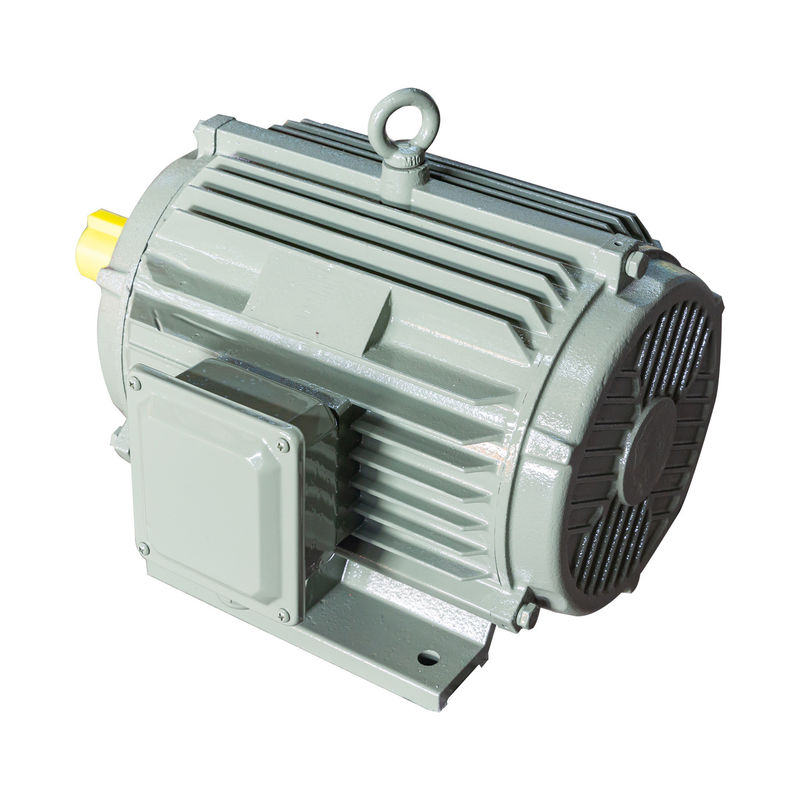

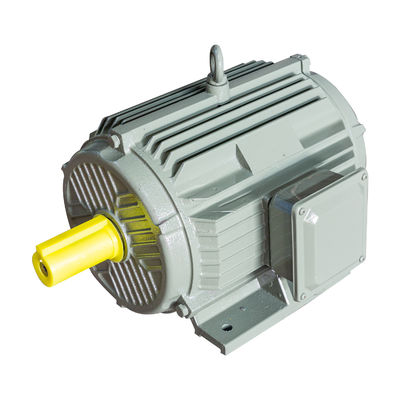

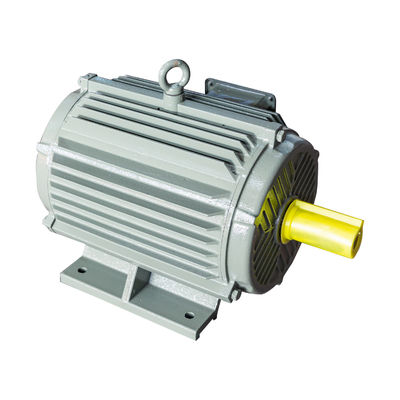

IE3 High Efficient Low Voltage Three Phase Asynchronous Induction Motor
IE3 Series motors,high efficiency three phase asynchronous motors, produced according to the national standard GB18613-2012, The efficiency of the IE3 series motor complies with the national level 2 energy efficiency requirements an is consistent with IE2 of IEC60034-30.
These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration and running smoothly.
The efficiency of the YE4 series motor complies with the national level 2 energy efficiency requirements and is consistent with IE3 of IEC 60034-30.
1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Rated Voltage 380V, Rated frequency 50HZ;
5, Encloseure protection: IP55(IEC34-5)
6, Cooling method: IC411(IEC34-6)
7, Frame size(center height)80-355mm
8, Rated power:0.75-315kw
9,No. Of poles: 2,4,6,8,10
10,Customization is also available.
