Product Details:
|
| Frame Material: | Casting Steel | Frame Size: | From 80mm To 355mm |
|---|---|---|---|
| Rated Power: | From 0.75KW To 355KW | Rated Voltage: | 380v,400v,690v.etc. |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP55 | Ambient Temperature: | -40℃~+50℃ |
| Cooling Method: | IC416 | Mounting Type: | B3/B5/V1/B35 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Highlight: | YSP Variable Speed Electric Motor,Variable Speed Electric Motor IP55,Electric Motor IP55 |
||

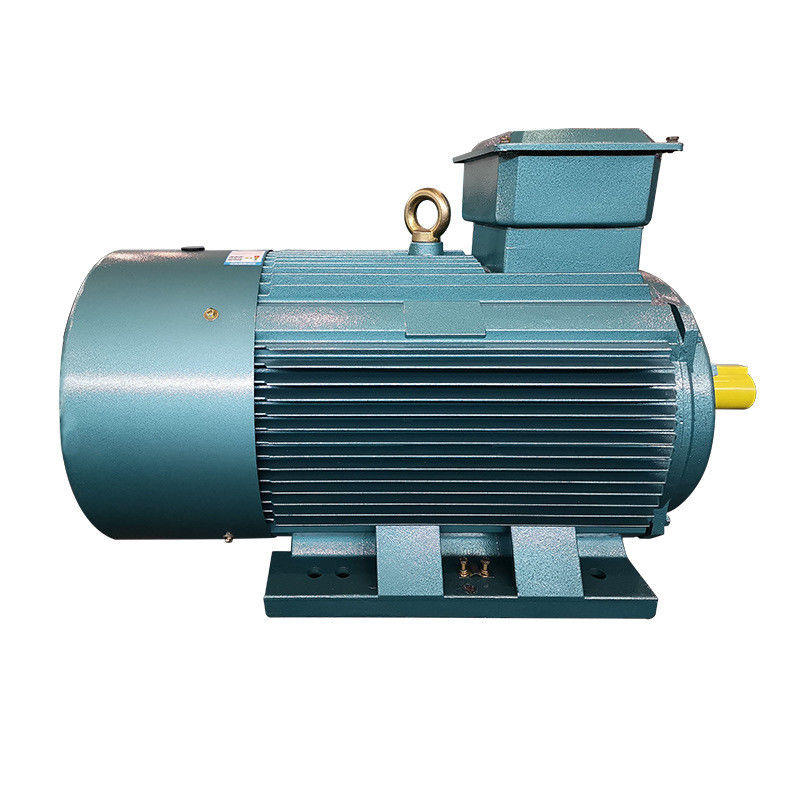

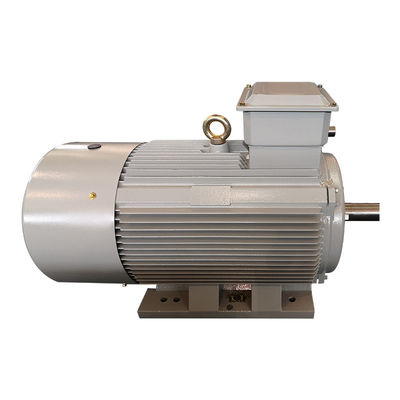

YSP Series variable frequency and variable speed electric motor
With the development of electric power technology, in order to meet the needs of the market, our company has extensively investigated and collected relevant information at home and abroad, thus developed the YSP Series variable frequency and variable speed electric motor. This series motors are made in accordance with the Standard GB755, IEC 34-1 and IB/T71.8-2014, with the advantages of low noise, little vibration and wide range speed adjustment.
YSP series motors in 5~50HZ frequency range for constant torque speed control, in 50-75HZ frequency range for constant power speed control.
According to customers requirements, this series motor can be installed with temperature detector and heater.
Terms of using:
1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Encloseure protection: IP55
5, Cooling method: IC411/IC416(IEC34-6)
