Product Details:
|
| Frame Material: | Casting Steel | Frame Size: | From 355mm To 1120mm |
|---|---|---|---|
| Rated Power: | From 220KW To 18000KW | Rated Voltage: | 3.3KV/6KV/6.3KV/10KV/11KV |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP54/IP55 | Ambient Temperature: | -20℃~+40℃ |
| Cooling Method: | IC611/IC616 | Mounting Type: | B3 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Highlight: | YTM High Voltage Induction Motor,YMPS High Voltage Induction Motor,YHP Motor Asynchronous |
||

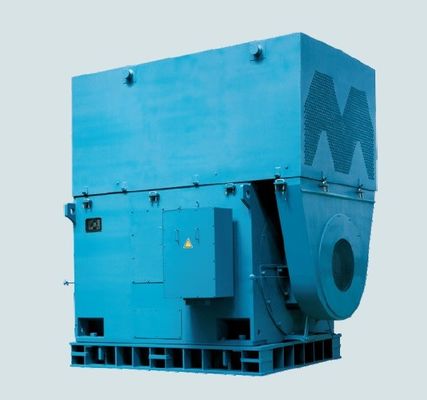

YTM/YHP/YMPS series of motors are specially used for coal mill developed in the early 1990s, according to IEC standard.
YTM series motor is specially for cylindrical coal mill; YHP series motor is specially for bowl type HP coal mill and YMPS series motor is specially for bowl MPS coal mill.
Efficiency level: High efficiency energy-saving
Rated output: 150~8000 kW
Rated voltage: 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V
Rated frequency (speed):
50Hz (3000/1500/1000/750/600/500/425/375/325 r/min)
60Hz (3600/1800/1200/900/720/600/500/450/400 r/min)
No. of poles: 2P, 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P
Mounting methods: Horizontal foot mounted IM1001 (B3)
Material of frame/housing: Fabricated in welded steel plate frame
Frame size: 355~800 frame
Service Factor: 1.00
Insulation Class: F (155ºC)
Temp. Rising: ΔT=80°K
Bearing type: Roller/Ball bearing
Working Duty: S1 (Continuous)
Ambient Temperature: -20°C ~ 40°C
Altitude: <=1000 m.a.s.l
Ambient humidity: <=90%
Protection Class: IP44, IP54, IP55
Cooling: IC611 Self-ventilated with air-to-air heat exchanger, heat exchanger on top of motor
Lubricating: Grease lubricated bearings
Grounding lug: On the frame and terminal box
Temperature detector: PT100
Material of nameplate: Stainless steel
Metric Threaded Cable Entries on the Terminal Box
