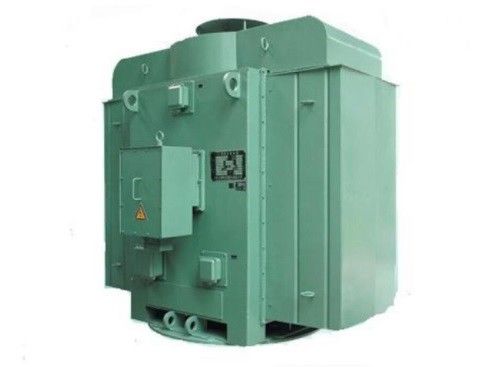

HV Vertical Circulating Pump Motor 3.3kv / 4.15kv / 6kv / 6.3kv / 10kv

HV vertical motor for circulating pump and condensation pump

YL,YLST, YKKL, YKSL series medium-size and large size three-phase vertical asynchronous motor is our company through the introduction and absorption of foreign advanced motor manufacturing technology, combined with my company's 50 years of long-term three-phase asynchronous motor design and manufacturing experience, Developed in 1990s to replace JSL11-15 three-phase vertical induction motor series of the new generation of Lipin. The new series of motors have been put into the market for more than 10 years after the summary of industrial operation experience, and design, manufacturing level of continuous improvement, perfect, its technical and economic indicators have reached the domestic leading level, and has been exported to Europe, the United States, Africa, Southeast Asia, Hong Kong and Macao and other more than 20 countries, regions and all over the country, well received by users.

The new series of motors are advanced in design, reasonable in structure, exquisite in material, excellent in manufacture, featuring high efficiency, energy saving, low noise, small vibration, reliable operation, easy installation, use and maintenance.

The design of the new series of motors conforms to the national standard GB /T755 "Quota and Performance of Rotating motors" and the International Commission of Electric Industry

Membership standard IEC60034-1 "rotating motor quota and performance.

The protection grade of the new series of motors conforms to the standard of GB /T4942.1 and IEC60034-5 "Protection grade of Rotating Motor Housing". According to the above standards, the protection grade of YL and YLST series is IP23; YKKL, YKSL series of protection levels are IP44, IP54, IP55 three kinds. If the user has other protection level requirements, they can put forward a separate agreement to supply.

New series of motor cooling method according to GB /T1993 and IEC60034-6 "rotating motor cooling method" rules YL, YLST series of cooling method IC01; The cooling method of YKKL series is IC611; The cooling force method of YKSL series is IC81W. If users need motors with other cooling methods, they can put forward a separate agreement to supply.

The structure and mounting type of the new series of motors are IMV1 (vertical, with flanges), conforming to GB997 and IEC60034-field

Code for Machine Structure and Installation Type.

2. Scope of use

The motor can be used to drive the water pump and other equipment installed vertically. The basic indication of the normal operation of the motor is

Under his

A. The altitude is not more than 1000m;

The ambient temperature should not exceed 40℃; The lowest ring knows the air temperature, for the motor using rolling bearings

The motor with sliding bearing for mowing rice is 5C, and the motor with YKSL series is!

Let series motor, air cooler into ロ outside cooling water temperature is not more than 33 ℃, minimum temperature card a month average relative humidity is 90%, the highest and the average minimum temperature not in 2 month

. The power supply frequency is 50Hz±1%;

. Operating voltage variation range is not greater than the rated voltage ±5o; G. The motor quota is S1 continuous operation.
