Product Details:
|
| Frame Material: | Casting Steel | Frame Size: | From 315mm To 450mm |
|---|---|---|---|
| Rated Power: | From 355KW To 1500KW | Rated Voltage: | 380v,400v,690v.etc. |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP55 | Ambient Temperature: | -40℃~+50℃ |
| Cooling Method: | IC411 | Mounting Type: | B3/B5/V1/B35 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Highlight: | ISO14001 Low Voltage Electric Motor,Low Voltage Electric Motor IC411,IP55 Motor 3 Phase |
||

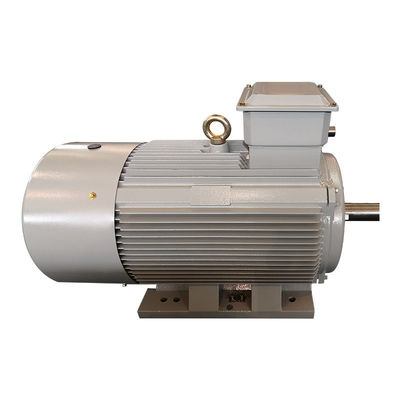

low voltage big power 3 phase asynchronous motor
low voltage big power three phase asynchronous motors, produced according to the national standard GB18613-2012,
These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration and running smoothly. Widely used for industrial pump, industrial fan, compressers.etc.
1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Rated Voltage 380V/660V/690V, Rated frequency 50HZ/60HZ;
5, Encloseure protection: IP55(IEC34-5)
6, Cooling method: IC411(IEC34-6)
7, Frame size(center height)80-355mm
8, Rated power:355-1500kw
9,No. Of poles: 2,4,6,8,10
10,Customization is also available.
