Product Details:
|
| Name: | Variable Frequency High Efficiency 3 Phase Asynchronous Motor | Frame Size: | From 355mm To 1120mm |
|---|---|---|---|
| Rated Power: | From 220KW To 18000KW | Rated Voltage: | 3.3KV/6KV/6.3KV/10KV/11KV |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP54/IP55 | Ambient Temperature: | -20℃~+40℃ |
| Cooling Method: | IC611/IC616 | Mounting Types: | B3 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Highlight: | 3.3KV 3 Phase Asynchronous Motor,6KV 3 Phase Asynchronous Motor,Motor Mounting Types B3 |
||

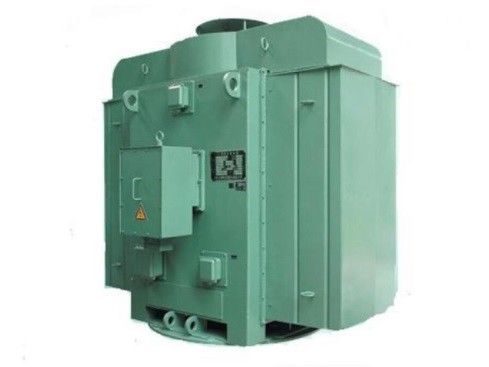

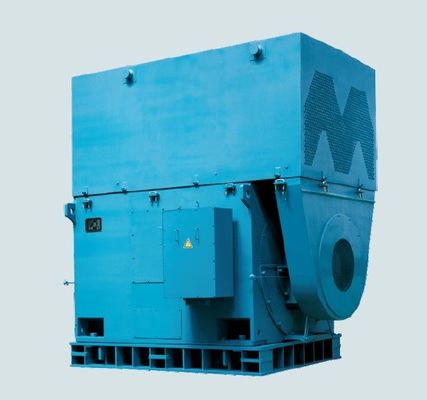

Variable Frequency High Efficiency 3 Phase Asynchronous Motor
YX, YXKS, YXKK series high-efficiency high-voltage three-phase asynchronous motors are a new generation of high-efficiency and energy-saving motor products, which can be interchangeable with ordinary Y series high-voltage three-phase asynchronous motors to improve the operation efficiency of enterprises, save energy and reduce emissions.
The tolerances of the power grade installation dimensions of this series of motors are in line with the Chinese national standards GB/T755 and IEC34-1 Magi GB, 13957 and JB/T10446. In terms of electrical performance, the loss is reduced by 20% on the basis of the above standards, and the energy efficiency level implements the level 2 energy efficiency of GB30254-2013.
The shell protection grades of this series of motors are IP23, IPW24, IP44 and IP54 respectively according to the standards of GB/T4942.1 and IEC 34-5 "rotating Motor Shell Protection Grade".According to customer requirements, we can also provide motors with other voltage levels (such as 6.3KV, 6.6KV, 11KV, 13.8KV) and frequency (such as 60HZ).
About us
Relying on Xiangdian Research Institute, the company specializes in research and development, manufacturing, sales, maintenance of AC, DC motors, auxiliary power station motors, high-efficiency energy-saving motors and high-speed railway wind power auxiliary motors.
XDMC the backbone enterprise of China's electrical industry and the comprehensive test base of new products in China's electrical industry.
Quality Customer
Our Services
· Customizing the motors according to customers' requirements.
· Delivery time for sample order: 1-5 days, for pallets order 7-15 days after receiving clear payment
· Warranty: 1 year for repairing or replacement of motors, customs duty & freight not included (have maintenance point ).
FAQ
Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
Q: What is the MOQ?
R: 1 set, accept sample.
Q: When you ship my order
R: Normally container need 15-40days, sample 3-7DAYS
Q: How about the quality guarantee period?
R: One year. We have maintenance point in the world.
Q: Do you have the certificates?
R: Yes, we have passed the CE and CCC certification.
Q: Do you offer ODM & OEM service.
R: Yes, we can custom design for specific application.
Q: When can I get the quotation?
R:We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade manager or call us directly.
Q: How can I get a sample to check your quality?
R:After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ
Q: What is your main market?
R:Southeast Asia, South America,Middle East.North America,EU After-sales Service 1 year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
