Product Details:
|
| Name: | IEC 63 Frame 3-Phase IEC Metric General Purpose AC Motors | Frame Size: | From 80mm To 355mm |
|---|---|---|---|
| Rated Power: | From 0.75KW To 355KW | Rated Voltage: | 380v,400v,690v.etc. |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP55 | Ambient Temperature: | -40℃~+50℃ |
| Cooling Method: | IC411 | Mounting Type: | B3/B5/V1/B35 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Frame Material: | Casting Steel | ||
| Highlight: | IP55 Low Voltage Induction Motor,Low Voltage Induction Motor IEC,IEC General Purpose AC Motors |
||

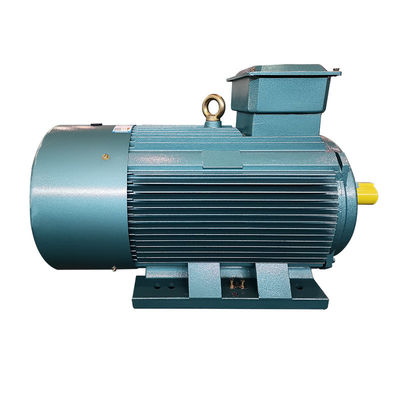

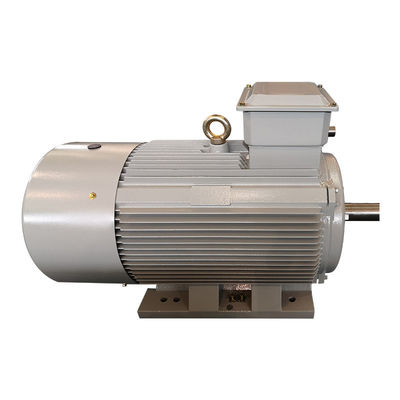

IEC 63 Frame 3-Phase IEC Metric General Purpose AC Motors
| Type | Output(KW) | A | Speed r/min |
Efficiency Eff% |
Power fact | Rated torque | Tst/TN | Tst/TN | Tmax/TN | Noise | Weight(KG) |
| YE3-180M-2 | 22 | 40.5 | 2940 | 92.7 | 0.89 | 70.7 | 2 | 8.2 | 2.3 | 83 | 187 |
| YE3-200L1-2 | 30 | 54.9 | 2950 | 93.3 | 0.89 | 96.1 | 2 | 7.6 | 2.3 | 84 | 242 |
| YE3-225M-2 | 45 | 80.8 | 2970 | 94 | 0.9 | 143.2 | 2 | 7.7 | 2.3 | 86 | 335 |
| YE3-250M-2 | 55 | 98.5 | 2970 | 94.3 | 0.9 | 175 | 2 | 7.7 | 2.3 | 89 | 415 |
Product Description
IE2 Series high efficiency three phase induction motor
IE2=YE2, level 3 energy efficiency.
IE3=YE3, level 2 energy efficiency.
IE4=YE4, level 1 energy efficiency.
IEC 63 frame three-phase IEC metric general purpose AC motors have an 11mm diameter, 23mm length shaft whose center is 63mm above the base mounting surface. They are commonly used in countries outside the U.S. to power compressors, conveyors, fans, and pumps that require International Electrotechnical Commission (IEC) electrical standards.
Terms of using:
1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Rated Voltage 380V, Rated frequency 50HZ;
5, Encloseure protection: IP55(IEC34-5)
6, Cooling method: IC411(IEC34-6)
About us
Relying on Xiangdian Research Institute, the company specializes in research and development, manufacturing, sales, maintenance of AC, DC motors, auxiliary power station motors, high-efficiency energy-saving motors and high-speed railway wind power auxiliary motors.
XDMC the backbone enterprise of China's electrical industry and the comprehensive test base of new products in China's electrical industry.
Our Services
· Customizing the motors according to customers' requirements.
· Delivery time for sample order: 1-5 days, for pallets order 7-15 days after receiving clear payment
· Warranty: 1 year for repairing or replacement of motors, customs duty & freight not included (have maintenance point ).
FAQ
Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
Q: What is the MOQ?
R: 1 set, accept sample.
Q: When you ship my order
R: Normally container need 15-40days, sample 3-7DAYS
Q: How about the quality guarantee period?
R: One year. We have maintenance point in the world.
Q: Do you have the certificates?
R: Yes, we have passed the CE and CCC certification.
Q: Do you offer ODM & OEM service.
R: Yes, we can custom design for specific application.
Q: When can I get the quotation?
R:We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade manager or call us directly.
Q: How can I get a sample to check your quality?
R:After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ
Q: What is your main market?
R:Southeast Asia, South America,Middle East.North America,EU After-sales Service 1 year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
