Product Details:
|
| Name: | IEC60034/IE1/IE2/IE3/IE4 Three-phase Induction 3 Phase Y5 Series AC Electric Motor | Frame Size: | From 80mm To 355mm |
|---|---|---|---|
| Rated Power: | From 0.75KW To 355KW | Rated Voltage: | 380v,400v,690v.etc. |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP55 | Ambient Temperature: | -40℃~+50℃ |
| Cooling Method: | IC411 | Mounting Type: | B3/B5/V1/B35 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Frame Material: | Casting Steel | ||
| Highlight: | IE1 3 Phase AC Electric Motor,IE2 3 Phase AC Electric Motor,IE3 Electric Motor Induction |
||

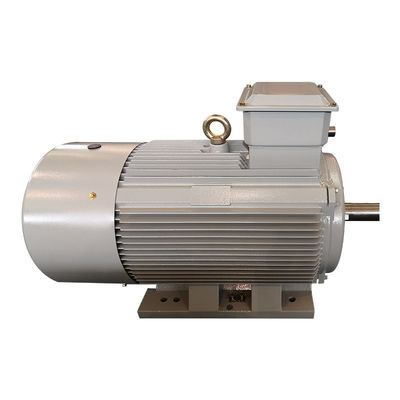

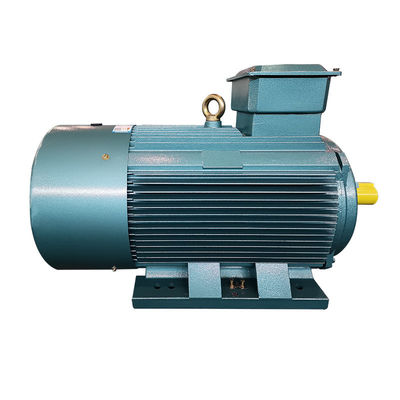

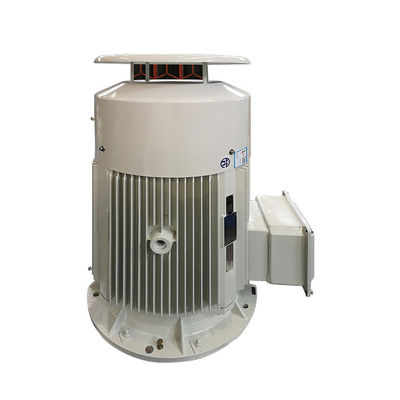

IEC60034/IE1/IE2/IE3/IE4 Three-phase Induction 3 Phase Y5 Series AC Electric Motor
IE2 Series high efficiency three phase induction motor
IE2=YE2, level 3 energy efficiency.
IE3=YE3, level 2 energy efficiency.
IE4=YE4, level 1 energy efficiency.
These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration and running smoothly.
The efficiency of the YE5 series motor complies with the national energy efficiency requirements and is consistant with IE5 of IEC 60034-30.
Terms of using:
1, Altitude: up to 1000m;
2, Ambient temperature: -15~40°C;
3, Operation duty: S1;
4, Rated Voltage 380V, Rated frequency 50HZ;
5, Encloseure protection: IP55(IEC34-5)
6, Cooling method: IC411(IEC34-6)
