Product Details:
|
| Frame Material: | Casting Steel | Frame Size: | From 355mm To 1120mm |
|---|---|---|---|
| Rated Power: | From 220KW To 18000KW | Rated Voltage: | 3.3KV/6KV/6.3KV/10KV/11KV |
| Rated Frequency: | 50HZ/60HZ | No. Of Poles: | 2-14 |
| Protection Degree: | IP54/IP55 | Ambient Temperature: | -20℃~+40℃ |
| Cooling Method: | IC611/IC616 | Mounting Type: | B3 |
| Accessories: | Temperature Element, Heater, Vibration Sensor | Insulation Class: | F/B |
| Highlight: | ODM High Voltage Induction Motor,High Voltage Induction Motor YFKK,YFKK Asynchronous Motor |
||

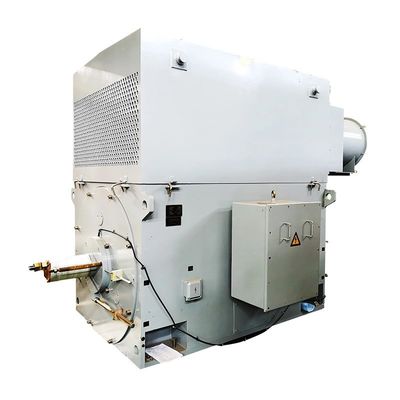

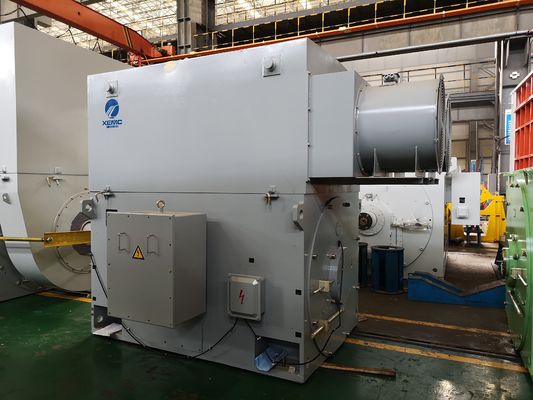

YFKK series high voltage three phase asynchronous motor special for industrial fan
YFKK series of motors are specially used as prime movers for various fans of large thermal power equipment, such as exhaust fans, induced draft fans, blowers, etc.
Efficiency level: High efficiency energy-saving
Rated output: 150~8000 kW
Rated voltage: 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V
Rated frequency (speed):
50Hz (3000/1500/1000/750/600/500/425/375/325 r/min)
60Hz (3600/1800/1200/900/720/600/500/450/400 r/min)
No. of poles: 2P, 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P
Mounting methods: Horizontal foot mounted IM1001 (B3)
Material of frame/housing: Fabricated in welded steel plate frame
Frame size: 355~800 frame
Service Factor: 1.00
Insulation Class: F (155ºC)
Temp. Rising: ΔT=80°K
Bearing type: Roller/Ball bearing
Working Duty: S1 (Continuous)
Ambient Temperature: -20°C ~ 40°C
Altitude: <=1000 m.a.s.l
Ambient humidity: <=90%
Protection Class: IP44, IP54, IP55
Cooling: IC611 Self-ventilated with air-to-air heat exchanger, heat exchanger on top of motor
Lubricating: Grease lubricated bearings
Grounding lug: On the frame and terminal box
Temperature detector: PT100
Material of nameplate: Stainless steel
Metric Threaded Cable Entries on the Terminal Box
